7.5Hp 4 Stroke Ship Mounted Engine Outboard Motor Single Cylinder Fishing Boat Engine Air-Cooled

Details:



Perfect service:1. Our products are shipped from USA and Germany and can arrive quickly in 5-10 days.2. If you have any questions, please contact us and I can provide you with return/refund/compensation/replacement.3. Note: After sending the message, don't worry. Because of our time difference, we will respond to your message within 24 hours. 100% refund for quality problems and damage

Attention: We have three combinations, the first one is the engine, the second one is the rack, and the third one is the engine and rack. What picture do you choose to place an order for The package you receive is the same product. When placing an order, please note whether you are purchasing a single product or an engine and rack together

Specification
Color: Black and Red
Material: Aluminum and Steel
Surface Treatment: Spray Molding Process
Assembly Required: Yes
Starting Method: Manual Start
Recommended Fuel: Normal Unleaded Gasoline
Engine Type: 4 Stroke, Single Cylinder, Air-cooled
Ignition System: TCI
Power: 7.5HP
Power Type: AWT170F/P(AWT170FD/P)
Bore*Stroke: 70*55mm/2.76*2.17in
Displacement: 212cc
Max Power: 4.3kW/3600rpm
Power Rating: 4.0kW/3600rpm
Peak Torque: 9.5N·m/2500rpm
Fuel Consumption: ≤395g/12.66oz/kW·h
Fuel Tank Capacity: About 3.6L/0.95gal
Oil Volume: 0.6L/0.16gal

Speed: 3600rpm
Running Time: About 3 Hours

Steering Angle: 180°
Operating Speed: ≥ 9.5km/5.9miles/h
Applicable Boat Size: 3-6m/9.84-19.69ft

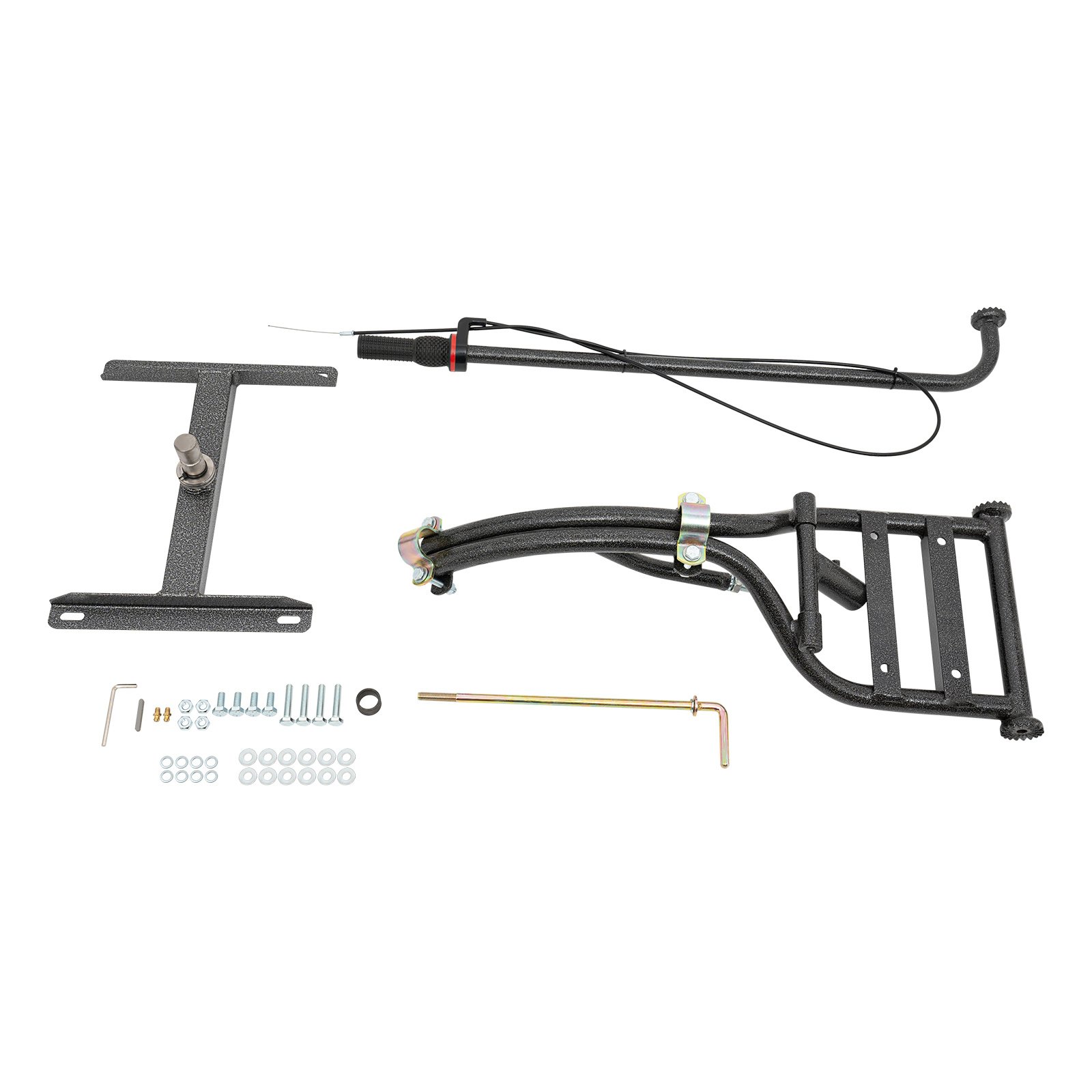

Rack:

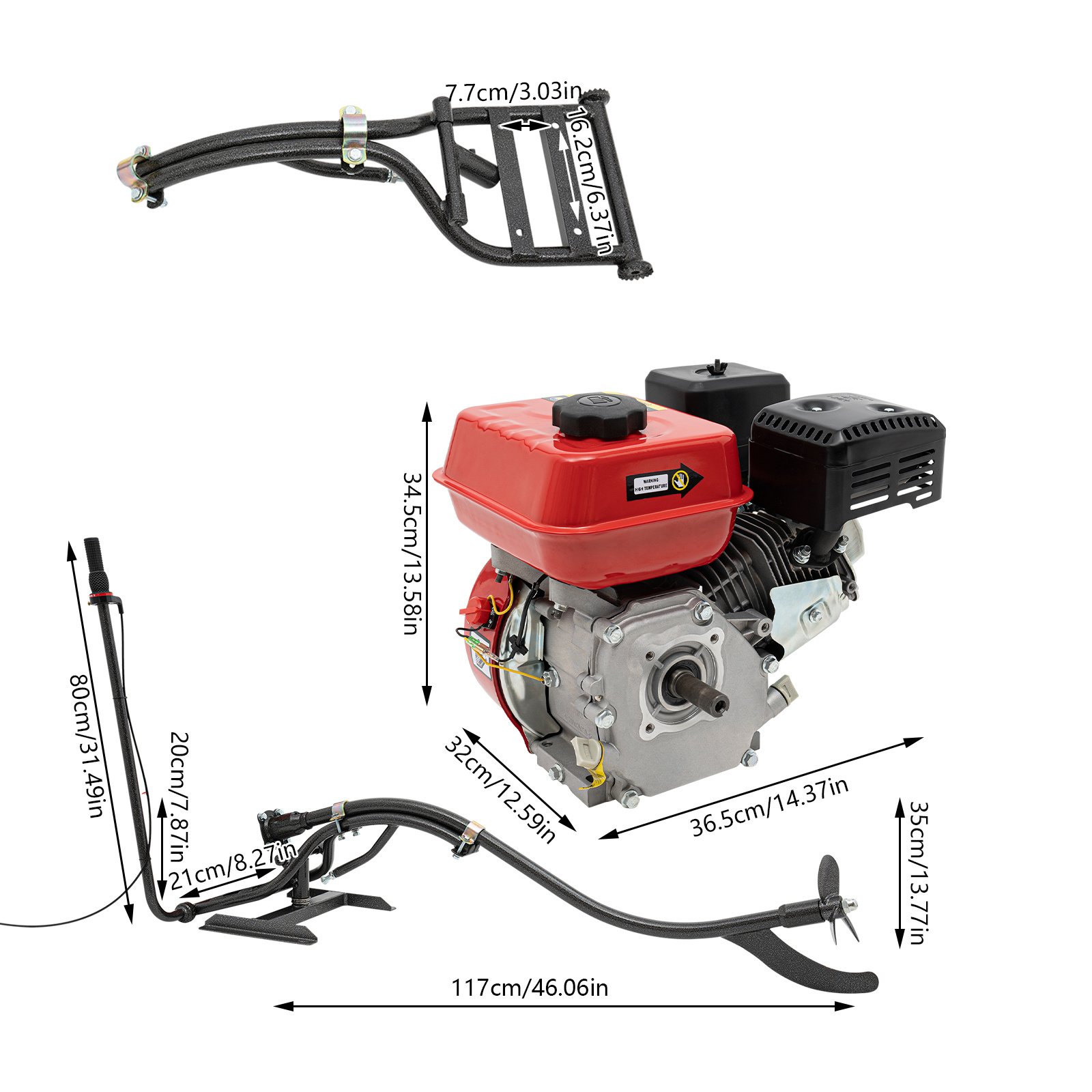

Rack Size(L&H): 101(80+21cm)*20cm/39.76(31.49+8.27)*7.87in
Net Weight: 18.5kg/40.79lbs
Gross Weight(kg): 19.6kg/43.21lbs
Package Size: 135*29*19cm/53.15*11.42*7.48in

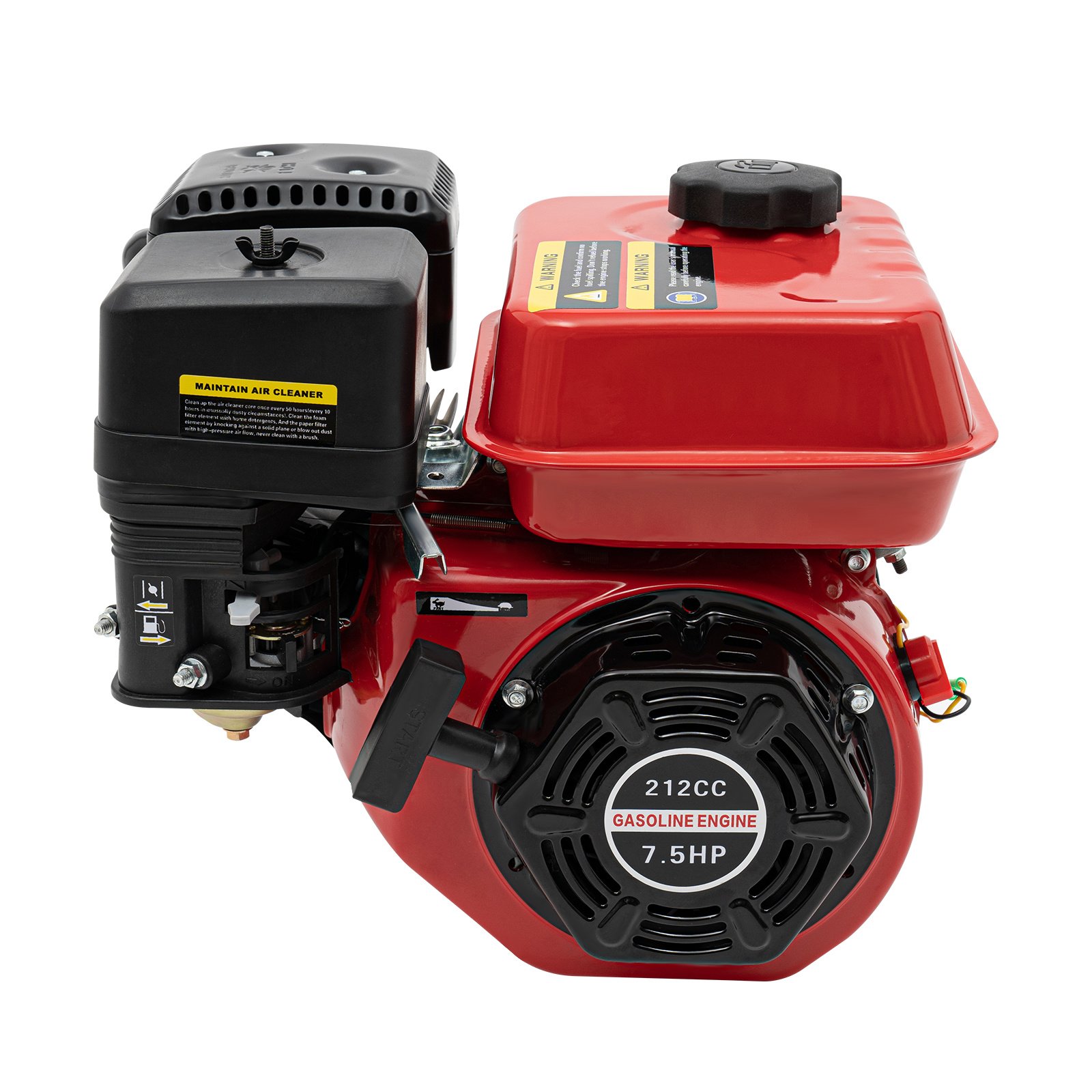

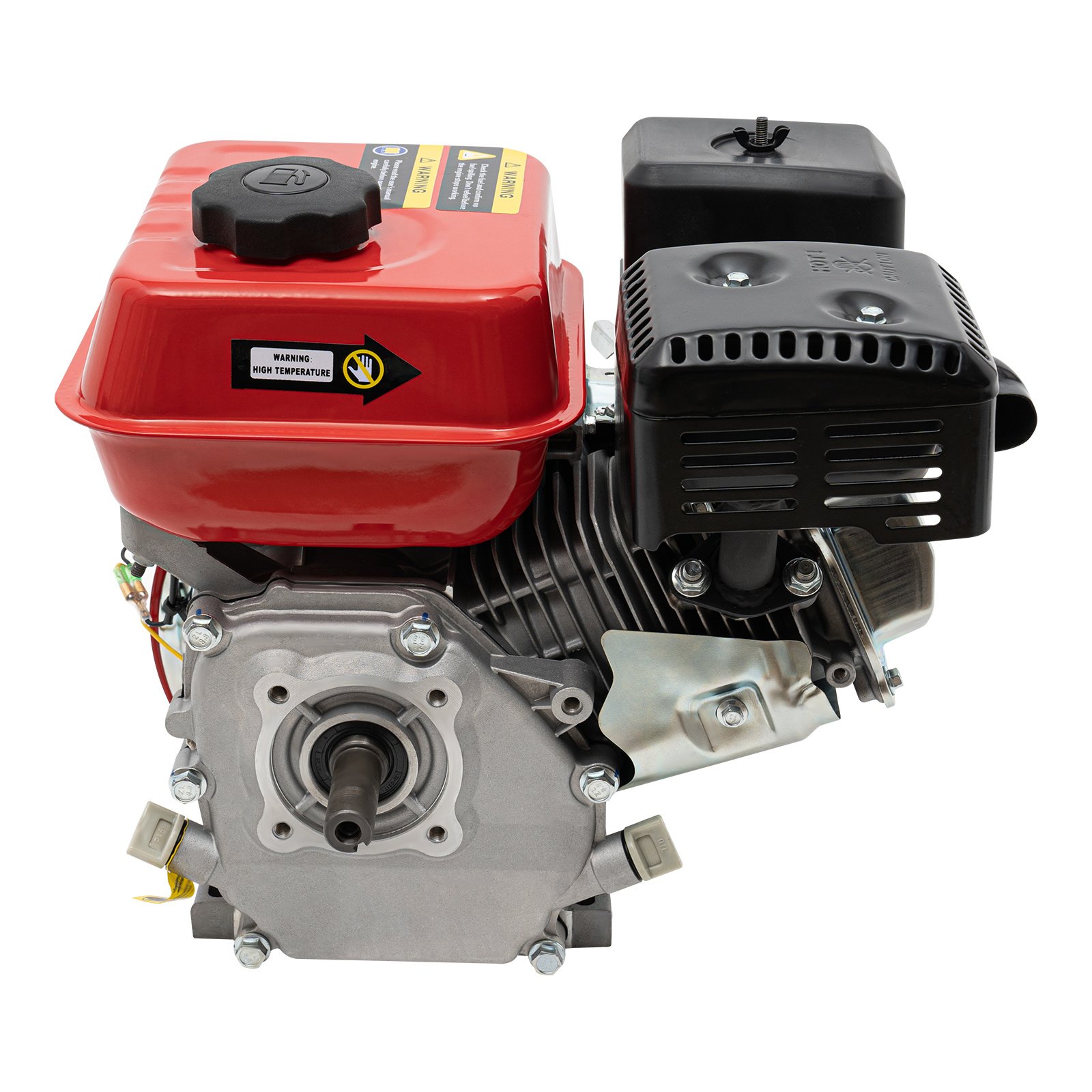

Engine:
Engine Size: 36.5*32*34.5cm/14.37*12.59*13.58in
Net Weight: 19kg/41.89lbs
Gross Weight(kg): 26.8kg/59.08lbs
Package Size: 42*47*45cm/16.54*18.5*17.72in

Package Included
1*Four-stroke Outboard Engine
1*Rack
1*EnglishManual
Other Accessories for Installation

Notes
1.Please read the operating manual and label carefully before use and pay particular attention to the safety instructions included.
2.All the gasoline machines are noisy, we did not test the decibels, but the noise is the same as the motorcycle, so it is a normal phenomenon.
3.Please keep your hands, hair, and clothes away from the flywheel and other rotating parts while the engine is running.
4.Please don't start the engine on the bank. If you want to test the engine, it should be done in the river. Please don't use the engine when it stops coming out of the water.
5.Please use up the gasoline in the fuel tank before storing it for a long time. The engine should be stored in a dry and well-ventilated place, avoiding direct exposure to sunlight.
6.Before leaving the factory, the engine oil (lubricating oil) is discharged and needs to be added before use. It is strictly prohibited to start without adding oil.
7.The product belongs to machines that operate at high temperatures, so the oil should be of the specified model and cannot be replaced with ordinary oil. After adding oil, Please do not place it horizontally as it can easily cause oil leakage.
8.10 hours is the running-in period, after which the lubricating oil needs to be changed for the first time. The gear oil in the propeller area must be replaced regularly.
9.After using it in salt water, it must be washed immediately with clean water
10.Please allow the slight color difference caused by the shooting light and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
Description
This product has a strong power of 7.5HP with four-stroke, which enables you to drive fast and save a lot of time and energy. It also has a 180-degree steering function, which is very easy to operate. The large capacity fuel tank also reduces the number of times you have to refuel, thus increasing your efficiency. Such an energy-saving, stable, and efficient outboard engine is a good assistant for your water operation.

Key Features
Durable and Sturdy: This product is mainly made of high-quality aluminum and adopts a spray molding process, making it highly resistant to impact, friction, and corrosion.

High Performance: The superior engine wind cooling system and three-blade propellers can help reduce drag and balance thrust, overcome huge water resistance, and improve driving speed, achieving optimal performance and ensuring high efficiency.

Large Capacity: This outboard engine has a fuel tank capacity of 0.95 gal and can work continuously for over 3 hours, meeting the needs of long-distance travel and work.

Flexible Steering: This product supports 180-degree flexible steering, allowing you to easily handle various curves.


Easy to Operate: The engine shutdown switch is installed on the engine, throttle cable and acceleration handle are installed on the control handle, together with the TCI ignition system, manual start function, and infinitely variable throttle, allowing for easy operation.

Excellent Heat Dissipation: The heat dissipation holes and air cooling system provide good ventilation to prevent engine overheating and improve its stability and reliability.

Good Noise Abatement: Compared with a two-stroke, this four-stroke product has a better noise abatement effect. It can provide a quieter working environment for you.

Energy Saving: A four-stroke machine can save about 30% more gasoline than a two-stroke machine for the same horsepower. This four-stroke outboard engine with a low fuel consumption (≤ 395g/kW · h) can save you money to a certain extent.

Protective Package: The packaging box is equipped with anti-collision foam, sponges, and bubble films which can effectively avoid the loss caused by general vibration and collision during transportation and ensure that you can receive intact products to a certain extent.

Details
Sturdy Base: The thickened and enlarged base ensures stable support for the engine, so you can use it with confidence.

Protective Board: It avoids hitting the bottom of the water when sailing in shallow waters.

Rubber Handle: It can enhance the grip of the handle and avoid slipping.

Application

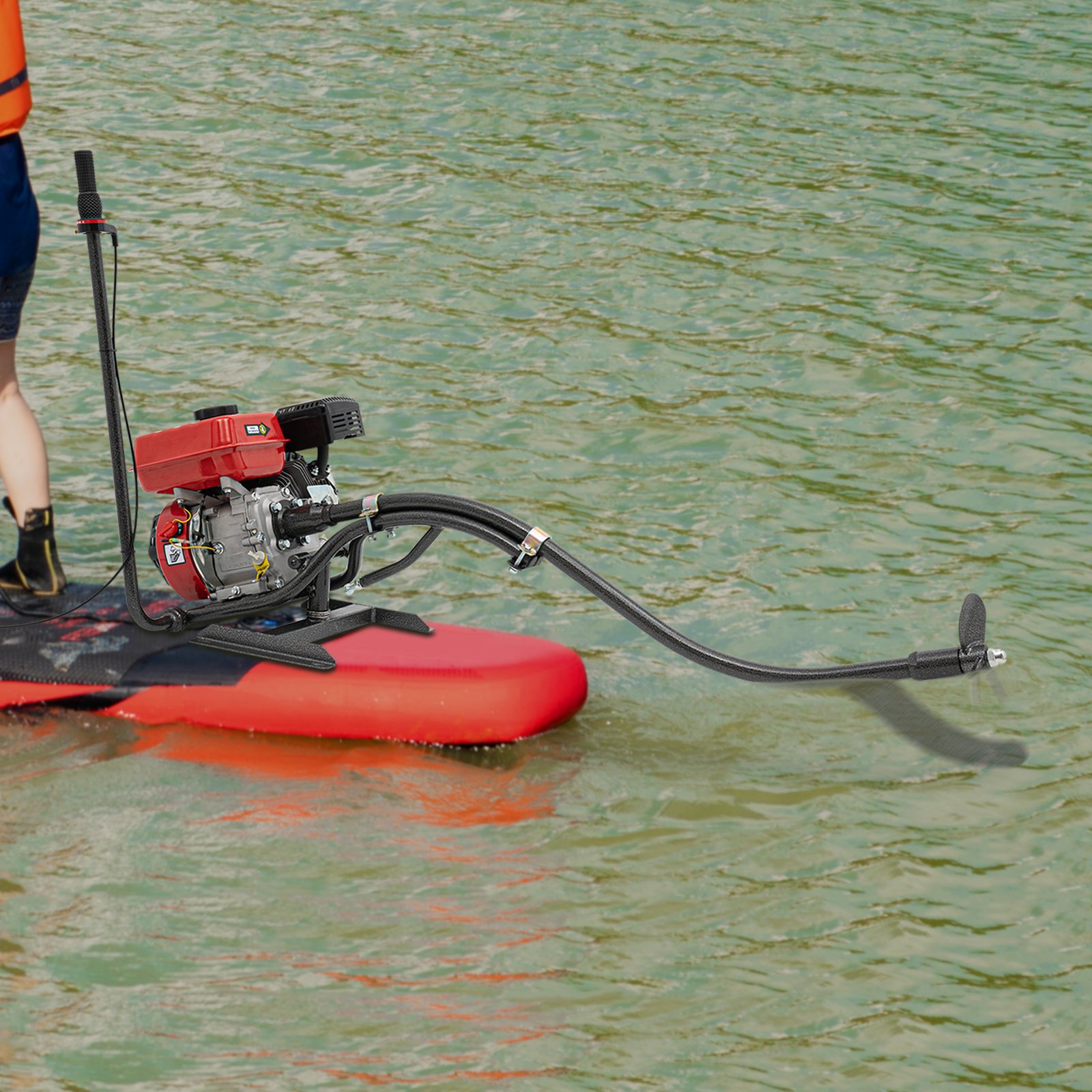

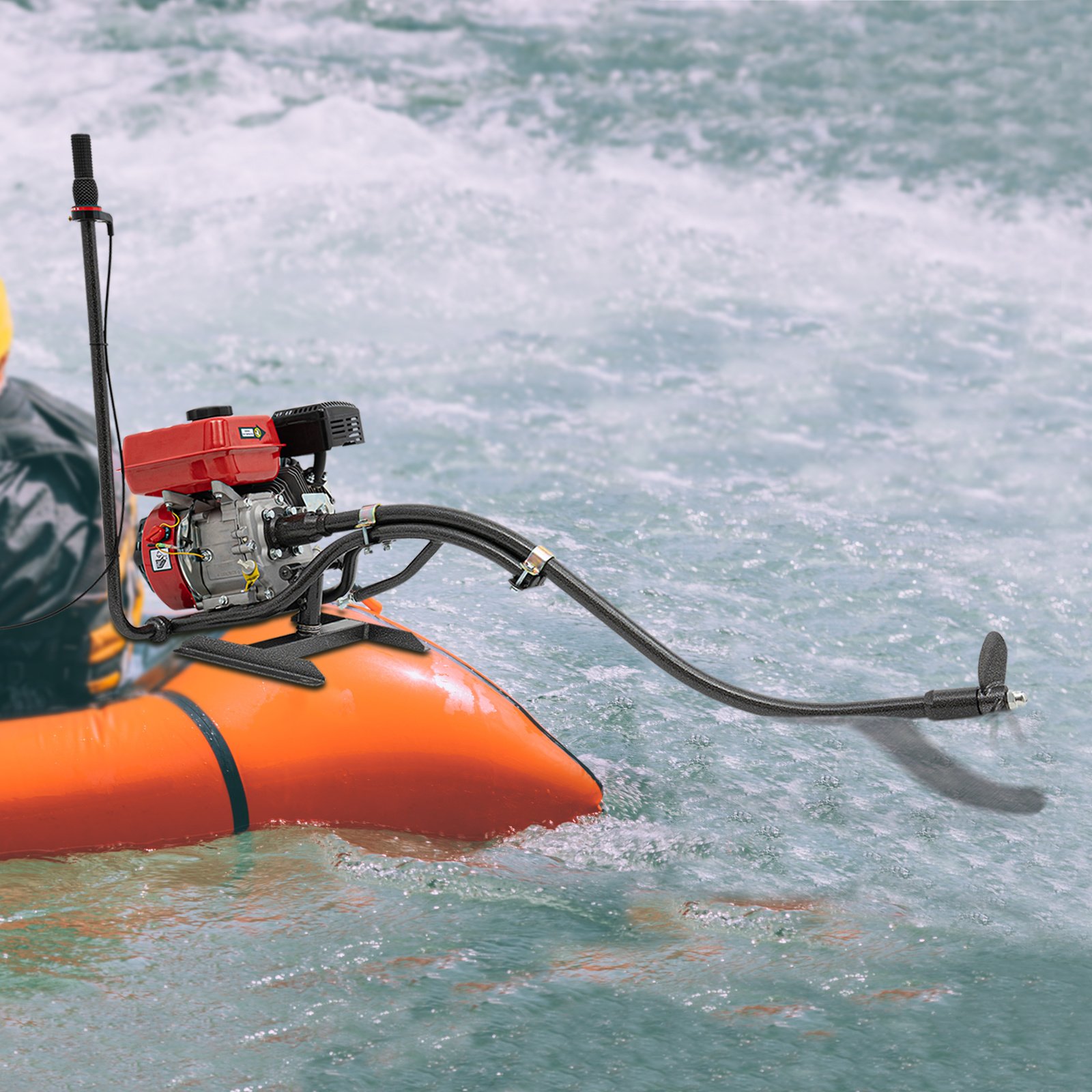

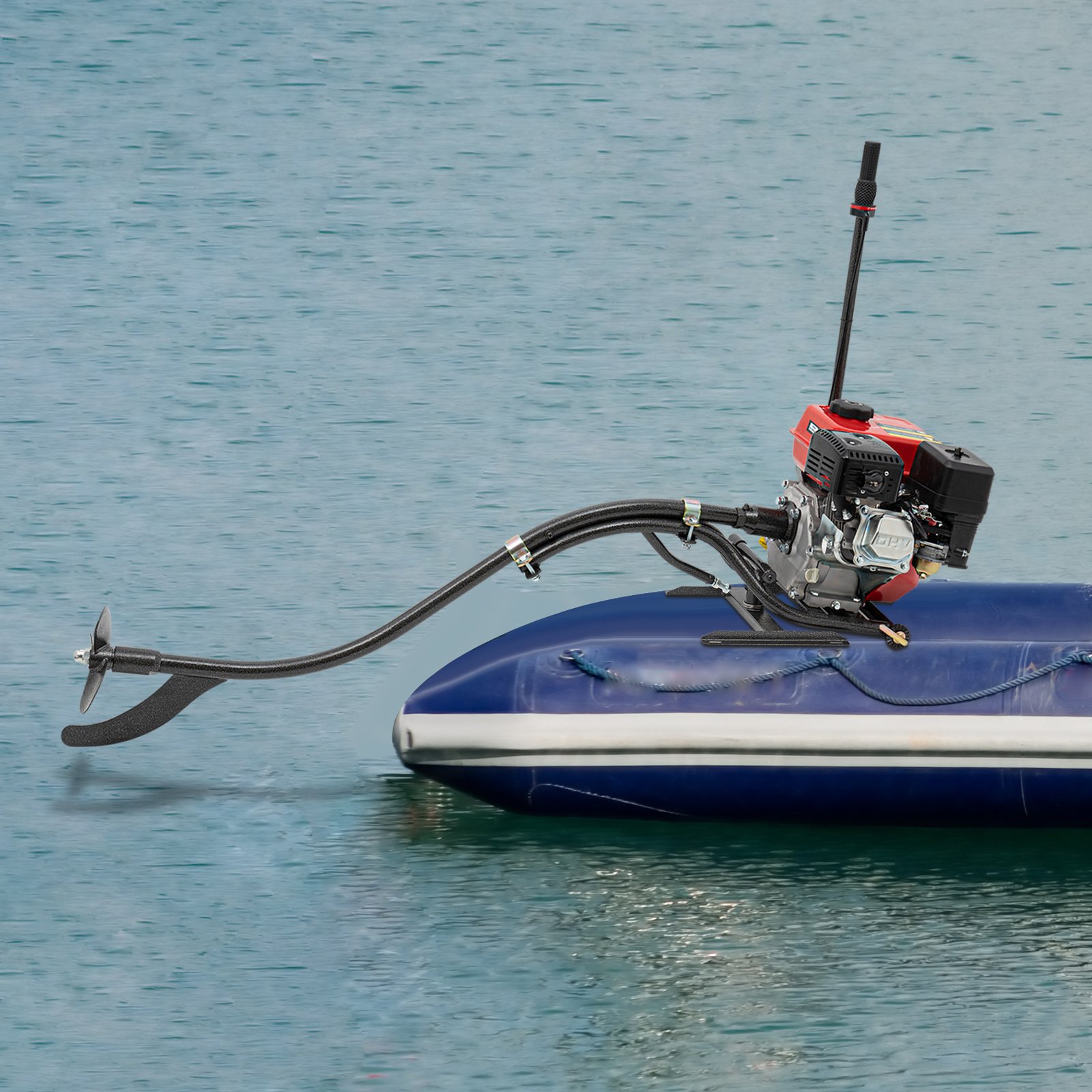

It is suitable for small boats of 9.84-19.69ft such as inflatable boats, iron boats, plastic boats, fiberglass boats, and wooden boats. It applies to water operations in rivers, lakes, reservoirs, fish ponds, etc.
